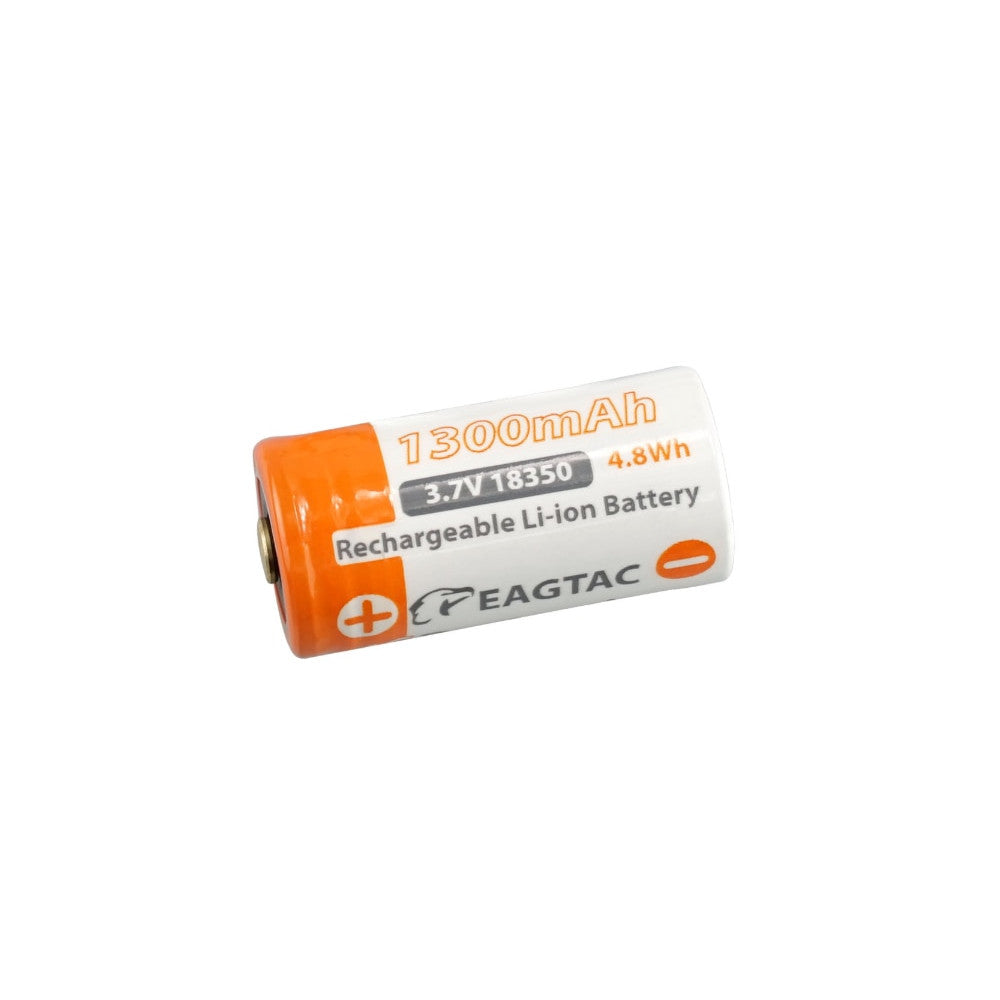

EagleTac 18350 1300mAh 3.7V Protected Li-ion Battery (10A discharge)

The EagleTac 18350 is a compact 1300mAh, 3.7V protected Li-ion battery built to handle 10A high current discharge. Protection is built into the anode, and features like pure nickel connections and a gold-coated brass button top make it a reliable choice for short-body lights.

• Protection PCB in the anode against short circuit (10A), over-discharge (2.5V) and over-charge (4.3V)
• All battery connections made with pure nickel plate
• Dual DFN power MOSFET design for high efficiency and lower operating temperature
• No memory effect and low self-discharge
• Built-in over-heat protection
• High voltage discharge platform
• Gold-coated brass button top
• Voltage: 3.7V
• Typical capacity: 1300mAh
• Dimensions: 18.5 mm x 38.5 mm
• Weight: 26 g

High Current Discharge

Both the battery and its protection PCB are designed to withstand 10A high current discharge.

Just 38.5 mm Tall

The short length lets this battery fit most 18350 applications.

Top Protection PCB

The protection PCB is built into the anode for high reliability.
