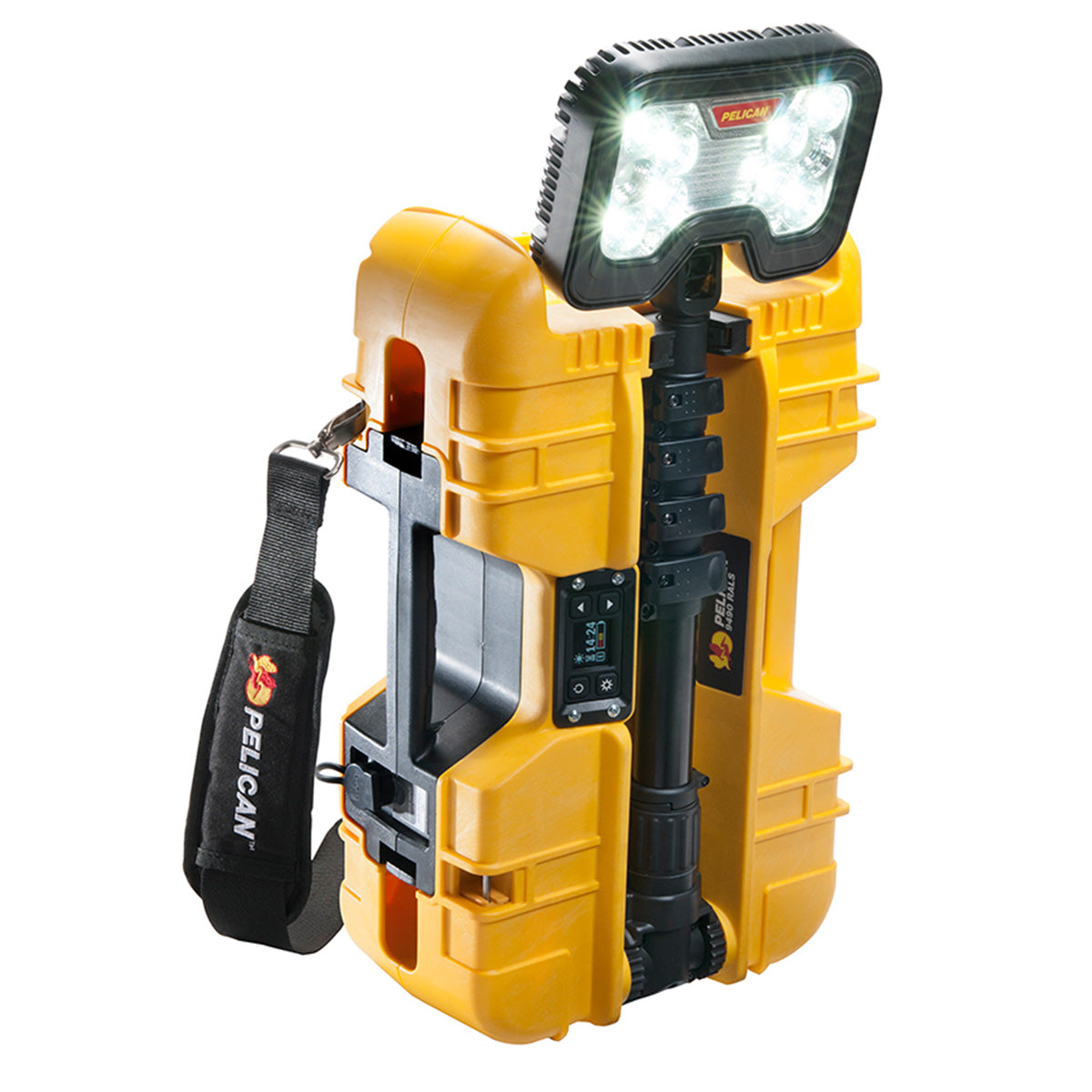

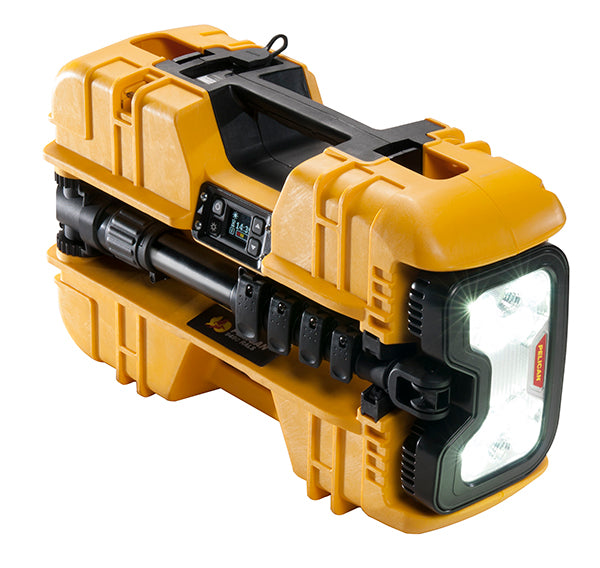

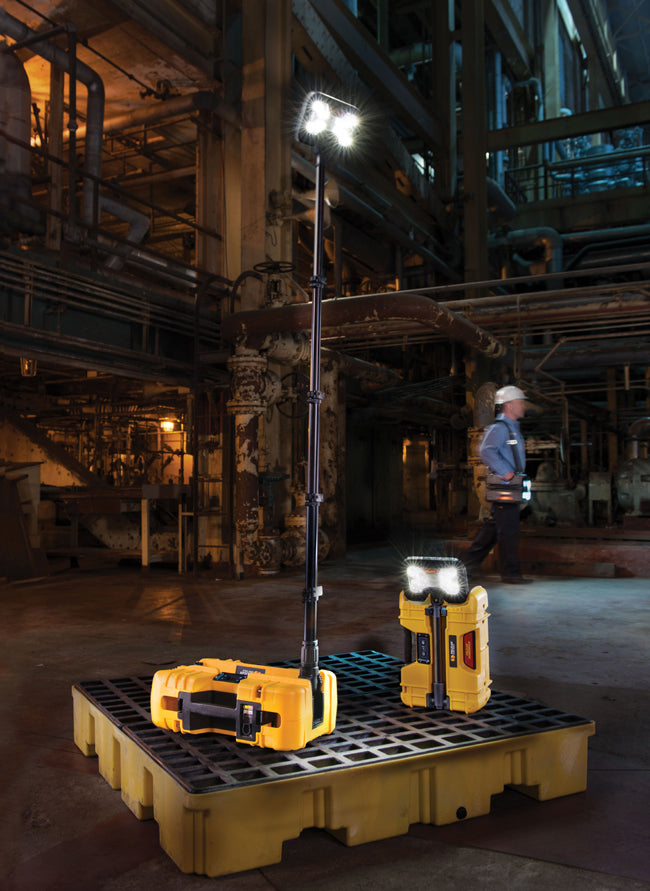

Pelican 9490 Remote Area Lighting System

To provide a convenient and ecologically responsible alternative to generator powered lights, Pelican announces the introduction of the 9490 RALS. The self-contained system is easy to set up and comes with a rechargeable and swappable battery. Instead of having defined brightness levels, the 9490 features a variable control system with user-defined brightness (up to 6,000 lumens). As it allows for varied light output levels, run time is also in the hands of the operator. The light can run for up to 24 hours, which can be doubled with an extra battery.

Features:

• Up to 6,000 lumens (calculated)

• Up to 24 hrs of run time

• Intelligent Control (allows or various light output levels)

• Maintenance free LED array with 50,000 hour life expectancy

• Built Pelican Tough & Tested

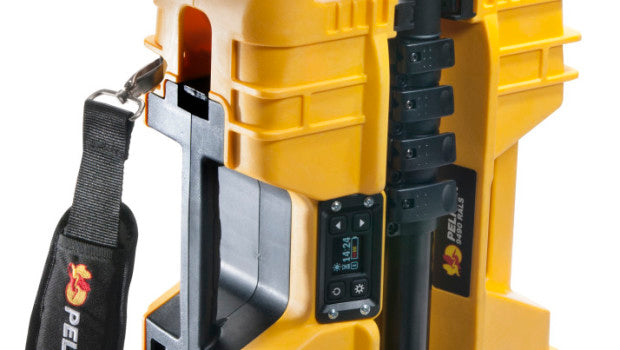

• Full time battery level indication with low level flashing indicator

• Deployable 6′ mast with 340 degree rotation

• Multiple deployment positions

• Convenient shoulder strap

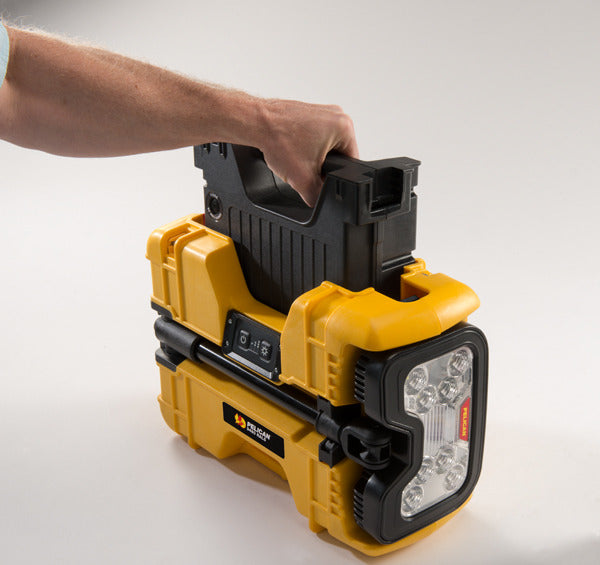

• Quick release / Hot swappable battery design with 12 volt power supply

• Free Bluetooth iPhone™ App Controls Multiple Units

Pelican Remote Area Lighting Systems (RALS) take the hassel out of lighting remote work spaces and offer lighting solutions for all your work needs. Breakthrough LED technology coupled with gel-acid batteries provide silent, dependable lighting anywhere it’s needed.

To provide a convenient and ecologically responsible alternative to generator powered lights, Pelican announces the introduction of the 9490 RALS. The self-contained system is easy to set up and comes with a rechargeable and swappable battery. Instead of having defined brightness levels, the 9490 features a variable control system with user-defined brightness (up to 6,000 lumens). As it allows for varied light output levels, run time is also in the hands of the operator. The light can run for up to 24 hours, which can be doubled with an extra battery.

The 9490 is engineered with a multi-position deployable mast that telescopes up to 183 cm. The maintenance-free LED array has a life expectancy of over 50,000 hours. A detachable nylon shoulder strap is also included.

Built tough and tested to military standards, the 9490 RALS is backed by Pelican’s legendary Guarantee of Excellence.

Specifications:

LIGHT SOURCE

LED Type LED Life Calculated Lumen Value High Flux LED 50000 hrs. 6000 (High) Lamp Heads Number of LEDs Beam Spread 1 10 LEDs per head 125° Brightness Settings IP Rating (Ingress Protection)   Variable IP54

POWER SOURCE

Battery Type Battery Run Time Battery Charging Time 12v Rechargeable, Sealed Lead Acid (SLA)  24 hrs. (Low)

12 hrs. (Medium)

3.5 hrs. (High) 8 hrs. from full discharge Battery Life Low Battery Warning 12V Primary

Sockets 500 cycles Full-time battery level display and low battery warning (visible flashing) 1 12V Auxiliary Sockets  Watts  Voltage 0 0 12

DIMENSIONS & WEIGHT

Head Length  Head Width Head Depth 8.25″(20.9 cm) 5.75″(14.6 cm) 2.25″(5.7 cm) Width Closed  Length Closed Height Closed 6.5″(16.5 cm) 20″(50.8 cm) 11.25″(28.6 cm) Mast Height (Extended) Cord Length (Retracted) Weight 72″(182.8 cm)- -(-) 32 lbs.(14.51 kg)

Click Here To Download User Manual for 9490 RALS
